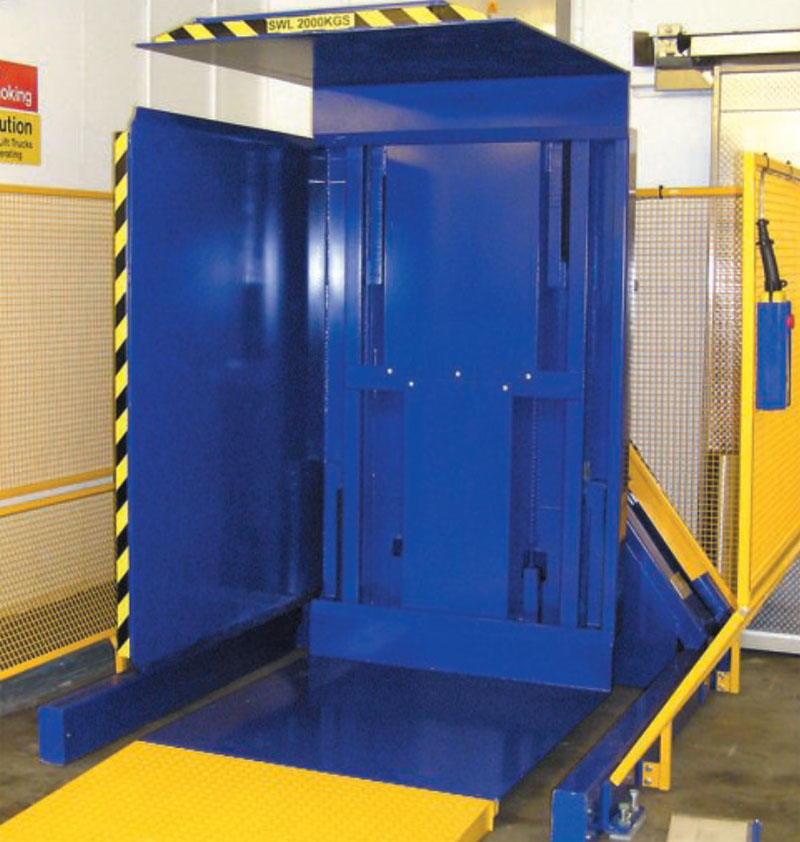

Free Standing DC Pallet Inverter
Premier's FS DC Pallet Inverter is a dual-clamped model with 180 degree inversion. This system is used to create a larger jaw opening range so that even the standard model can handle loads from 24" to 78" in height.
It is without doubt the most versatile system in the Premier range, transferring loads up to 4500lbs in weight and able to handle any standard pallet dimension. Its construction is rugged in the extreme.
The FS DC Inverter is mainly used by customers who wish to load at floor level by pallet truck. It therefore avoids the need to tie up a forklift truck and driver in busy loading bays or warehouses.
As with many of the others models, the FS DC is most commonly used to switch loads from one type of pallet to another. This could be from wood to plastic, from in-house to shipping or rental skids or just to eliminate non-standard pallets from a high-bay racking system. It is equally at home with bags, boxes, bottles, cans or paper stacks.

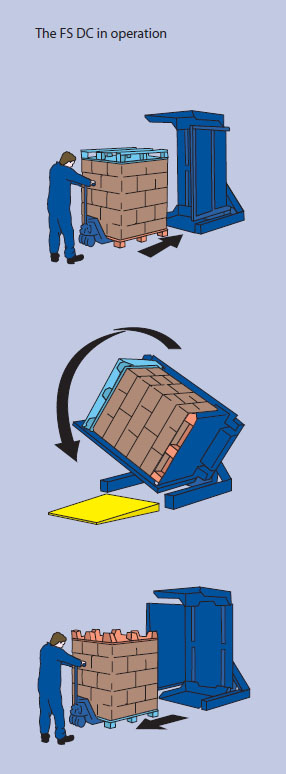

Operation of the FS DC Inverter is fast and efficient. A push button control system is standard with automation available as an option.
When to use a FS DC Pallet Inverter:
- When floor level loading is preferred.
- For loads which range widely in height.
- In tough environments with high throughput.
- When one model must handle a great variety of loads
FS DC Pallet Inverter Extra

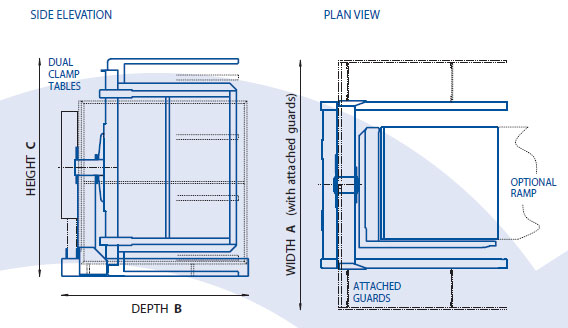

The FS DC Inverter can be supplied in three basic formats. The ramp loaded version is suitable for goods which cannot be squeezed too tightly and may need to be supported by the side wall during inversion.
The floor-flush table model is even easier to load by pallet truck but the pallet must sit in the middle of the load table so it works best with product clamped tightly.
The FS DC Pallet Inverter is also available in a FLT loaded format when it can be used with wider ranging load heights than the FS. It can also be customised with bigger load tables and a greater jaw opening.
The letters FS in its name are actually an abbreviation of Free Standing indicating that this inverter is totally stable without floor fixture. However, most users find a permanent location for the machine and it is invariably bolted to the floor. Stainless steel, hot zinc spray and Steel It paint are all options with the FS DC.
